TP-Link Omada EAP655-Wall | AX3000 Wall-Plate WiFi 6 Access Point

In-Room Wi-Fi 6 and Wired Ports in One Wall Plate

The TP-Link Omada EAP655-Wall fits into a standard wall junction box and delivers AX3000 Wi-Fi 6 plus three Gigabit wired ports. It is ideal for hotel rooms, dormitories, apartments and offices where you want strong in-room Wi-Fi and wired connections for TVs, phones or PCs.

Key Features

• AX3000 Wi-Fi 6 — up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

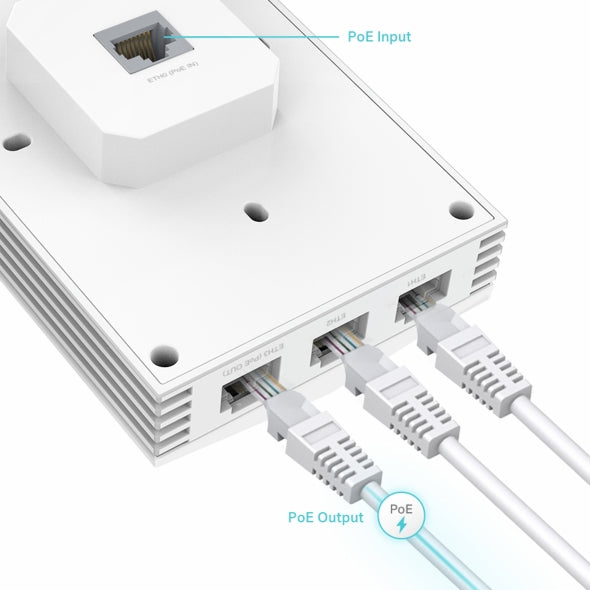

• 3 Gigabit downlink ports — wire up nearby devices; one port supports PoE out.
• PoE pass-through — power a device such as an IP phone from the wall plate.
• Junction box fit — compatible with 86 mm, EU and US standard junction boxes.
• Omada SDN management — centralised cloud or on-premises control.

Technical Specifications

• Model: EAP655-Wall
• Wi-Fi standard: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6), AX3000
• Wireless rates: 5 GHz: 2402 Mbps; 2.4 GHz: 574 Mbps
• Ethernet: 1× Gigabit uplink, 3× Gigabit downlink (1× PoE out)
• Power input: 802.3af/at PoE (802.3at required for PoE pass-through)
• Antennas: 2× 3 dBi (2.4 GHz), 2× 5 dBi (5 GHz)
• Concurrent clients: 120+
• Dimensions: 143 × 86 × 42.6 mm

What's in the Box

• EAP655-Wall access point
• Mounting kits
• Installation guide
